Double Spindle CNC Lathe
Introduction:
As a manufacturer based in China, we take pride in producing high-quality equipment that meets the needs of our customers. Our Double Spindle CNC Lathe is no exception, and we believe it is a product that many merchants outside of China will find attractive. In this product introduction, we will discuss the various features and benefits that make this product stand out from the competition.
Overview of the Product:
The Double Spindle CNC Lathe is designed specifically for high-volume production. It has two spindles that operate simultaneously, allowing for fast and efficient turning of parts. The lathe is controlled by a computer numerical control (CNC) system, which ensures high precision and accuracy.
Features and Benefits:
1. High-Speed Turning:
The Double Spindle CNC Lathe is built for speed. The two spindles work together to quickly and efficiently turn parts. This makes it an ideal choice for high-volume production runs where time is of the essence.
2. Precision and Accuracy:
The CNC system that controls the Double Spindle CNC Lathe ensures that all parts are turned with the highest level of precision and accuracy. This is particularly important for parts that require exact dimensions and tight tolerances.
3. Superior Surface Finish:
The Double Spindle CNC Lathe has a built-in finish control system that ensures a consistently superior surface finish on all turned parts. This makes it an ideal choice for parts that require a high-quality finish.
4. Ease of Use:
Although the Double Spindle CNC Lathe is a complex piece of equipment, it is designed to be user-friendly. The CNC control system is easy to operate, and the machine is simple to set up and adjust.
5. High Durability:
The Double Spindle CNC Lathe is built to last. It is made from high-strength materials and is designed to withstand the rigors of high-volume production. This ensures that the machine will provide dependable service for many years to come.
Applications and Industries:
The Double Spindle CNC Lathe is a versatile machine that can be used in a wide range of industries. It is particularly well-suited for the production of parts used in industries such as automotive, aerospace, and medical.
Conclusion:
The Double Spindle CNC Lathe is an outstanding piece of equipment that offers many benefits to merchants outside of China. Its high-speed turning, precision and accuracy, superior surface finish, ease of use, and high durability make it an ideal choice for high-volume production runs in a variety of industries. We are confident that this product will meet the needs of our customers and provide them with a competitive advantage in their respective markets.
MR32-5 ⅡThe detail design of Swiss CNC lathe

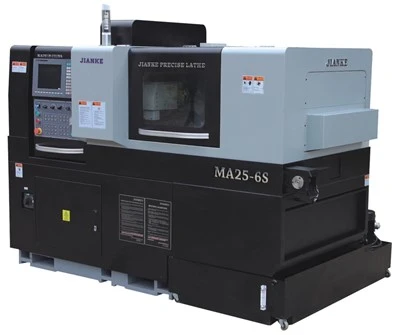

A,Appearance
Mechanical tool post structure diagram
拔插模块化
1,Description
Features:
1. Imported NSK bearings and THK linear rail screws are adopted, which achieves high progress and long service life
2. Free choice of no guide bushing or fixed guide bushing, saving materials and high yield. Choose power distribution guide bushes and linkage guide bushes for better benefits.
3. The main and auxiliary spindles are oil-cooled electric spindles, which have no dead angle cooling at high speed, and have more uniform heat dissipation and stronger performance than ordinary air-cooled electric spindles.
4. This machine adopts absolute operation, no need to return to the original point on and off, saving time and labor and labor.
5. Flexible knife row design, free selection.
6. Optional boring tool holder and interchangeable power head integrated machine for the secondary shaft can be easily realized
7. Uninterrupted power supply for 24 hours, high efficiency and labor saving
Brief Introduction：MRseries are Swiss high-speed precision Swiss CNC lathes, which have the ability of turning and milling. They are high-precision, wide-range and practical processing equipment. This type of machine tool is suitable for "slender shaft" parts with a relatively large length and diameter. High-volume, multi-variety, and high-precision machining tasks of "small" and "abnormal" parts. Widely used in various high-precision, multi-batch, complex-shaped shaft parts in medical, automobiles, motorcycles, communications, refrigeration, optics, home appliances, microelectronics, electronics, watches, mobile phones and other industries And complex machining of precision and small parts.
Functions：MR32-5 The CNC Swiss type lathe is equipped with a back-axis (ie, counter-spindle) system. The main shaft and the counter shaft can be rotated synchronously, which solves the processing of the back of the part and further improves the processing efficiency. This equipment can automatically complete the outer circle, front drilling, front tapping, front boring, threading, grooving, horizontal drilling, milling, and slot milling of shaft parts such as carbon steel, stainless steel and copper. , Radial tapping, cutting, back turning, back drilling, back boring, back tapping and other precision machining.
2,Technical Parameter
|
Double spindle Swiss CNC lathe MR32-5II |
||||
|
System |
Taiwan SYNTEC |
Syntec220TB |
||
|
Control channel |
Double channel |
|||
|
Minimum setting unit |
0.001mm |
|||
|
Machining |
Max processing diameter |
35 mm |
||
|
Max processing length at one time |
With guide bush |
185mm |
||
|
Without guide bush |
1:2.5D(Dia:Lenth) |
|||
|
Main spindle max drilling Dia |
Main spindle axial |
ER20 |
Φ12mm |
|
|
ER16 |
Φ10mm |
|||
|
ER11 |
Φ7mm |
|||
|
Main spindle max tapping Dia |
Main spindle axial |
ER20 |
M10 |
|
|
ER16 |
M8 |
|||
|
ER11 |
M6 |
|||
|
Power head max drilling Dia |
Radial |
Φ10mm |
||
|
Power head max tapping Dia |
Radial |
M8 |
||
|
Sub spindle max drilling Dia |
Sub spindle axial |
Φ10mm |
||
|
Sub spindle max tapping Dia |
Sub spindle axial |
M8 |
||
|
Tool |
Tool seat arrangement |
Upside tool seat |
||
|
Main spindle turning tool |
6 pieces |
1*15x15+5 * 16X16mm |
||
|
Main spindle side roatry power head |
5 pieces |
5 pieces ER16 |
||
|
Main spindle end face fixed tool seat |
4 pieces |
4*ER16 |
||
|
Sub spindle end face fixed tool seat |
4 pieces |
4*ER16 |
||
|
Main Spindle |
Main/sub spindle type |
Built-in oil-cooled electric spindle |
||
|
Main/sub spindle speed |
8000rpm/min |
|||
|
Main/sub spindle index |
0.001° |
|||
|
Main/sub spindle hole Dia |
37mm |
|||
|
Main/sub spindle center height |
1065mm |
|||
|
Motor power |
Main Spindle power (rated/maximum) |
3.7kw/7.5kw |
||
|
Sub Spindle power (rated/maximum) |
3.7kw/7.5kw |
|||
|
Side rotary head motor power |
1.0kw |
|||
|
Side rotary head speed |
5000rpm/min |
|||
|
No. of moving axis |
5 axis |
X1,Y1,Z1,X2,Z2 |
||
|
Rapid feeding speed |
24m/min |
|||
|
Moving axis motor power |
0.75kw |
|||
|
Other |
Parts receive device |
Short bar |
Parts conveyor collect parts |
|
|
Long bar |
Sub spindle backside collect parts |
|||
|
Power capacity |
25kw |
|||
|
Air pressure |
Above 0.4MPa |
|||
|
Cutting oil tank capacity |
290L |
|||
|
Machine size(L*W*H) |
2.8m×1.65m×2.0m |
|||
|
Lathe Weight |
3500KG |
|||
3,Standard Accessories
|
No. |
Name |
Qty |
Note |
|
1 |
Protective cover |
1 |
|
|
2 |
Signage |
1 |
Various warning signs, machine nameplates |
|
3 |
Main spindle |
2 |
Oil cooling electric spindle |
|
4 |
Turning tool row seat |
1 |
Upside tool seat |
|
5 |
Side power tool holder |
1 |
|
|
6 |
Main spindle end face drilling seat |
1 |
|
|
7 |
Sub spindle end face drilling seat |
1 |
|
|
8 |
Live rotary guide bush |
1 |
|
|
9 |
Pneumatic system |
1 |
Taiwan AIRTAG |
|
10 |
cooling system |
1 |
YUNHAI pump |
|
11 |
Lubrication system |
1 |
Japan HERG |
|
12 |
Electrical System |
1 |
Schneider |
|
13 |
Material receive device |
1 |
Material receive device / Long material aid device |
|
14 |
Lathe lighting |
1 |
DC24V |
|
15 |
Three-color warning light |
1 |
|
|
16 |
Special tool box |
1 |
Special tools included |
4,Main accessory brand and place of origin
|
Name |
Origin and Brand |
|
Operation System |
Taiwan SYNTEC |
|
Spindle and Driver |
Oil cooling electric spindle |
|
Bearing |
Japan NSK |
|
Guide rail |
Japan THK/Taiwan Hiwin/Taiwan PMI |
|
Guide screw |
Japan THK/Taiwan Hiwin/Taiwan PMI |
|
Servo Motor |
Taiwan SYNTEC |
|
Motor driver |
Taiwan SYNTEC |
|
Electrical components |
Germany Schneider |
|
Lubricant system |
Japan Herg |
|
Relay |
Japan Omron |
|
Stroke switch |
Japan Omron |
|
Magnetic valve |
Taiwan Airtag |
5,Controller system
|
Taiwan SYNTEC |
|
Axis control, axis linkage |
|
English/Metric Conversion |
|
Pitch error compensation |
|
Automatic operation, MDI operation, JOG feed |
|
Dry run, single block, block skip, selective stop |
|
G00 fast positioning |
|
Linear and circular interpolation(G01,G02,G03) |
|
Programmable pause(G04) |
|
Continuous feedrate override, JOG feedrate override |
|
Constant line speed control |
|
Decimal programming |
|
Absolute value/incremental value programming |
|
Canned cycle |
|
Tool compensation |
|
Status Display |
|
Self-diagnostic display |
|
Alarm and operation information display |
|
Chinese/English display |
|
8.4 "color LCD display |
* According to factors such as equipment upgrades/updates/optimizations, some of the above parameters and content may differ, Subject to the actual contract
